Premium Zinc-Aluminum-Magnesium (ZAM) Steel Coils engineered with advanced cut-edge self-healing capability, delivering 5 to 10x superior corrosion protection over standard galvanized steel. Produced to meet ASTM A1046, EN 10346, and JIS G3323 standards.

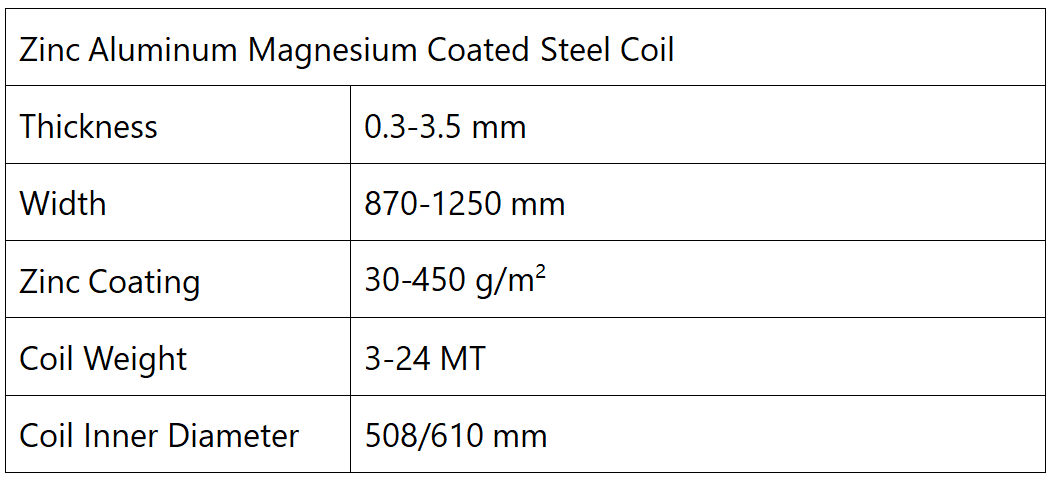

Specs & Coating: Thickness 0.3–3.5 mm | Width 870–1250 mm | Coating 30–450 g/m²
Coil & Features: Coil Weight 3–24 MT (ID 508 / 610 mm) | 5–10x Anti-Corrosion | Cut-Edge Self-Healing Barrier
Applications & Quality: Solar Mounting Brackets, Greenhouses, Coastal Infra | MTC 3.1 & SGS/BV Ready

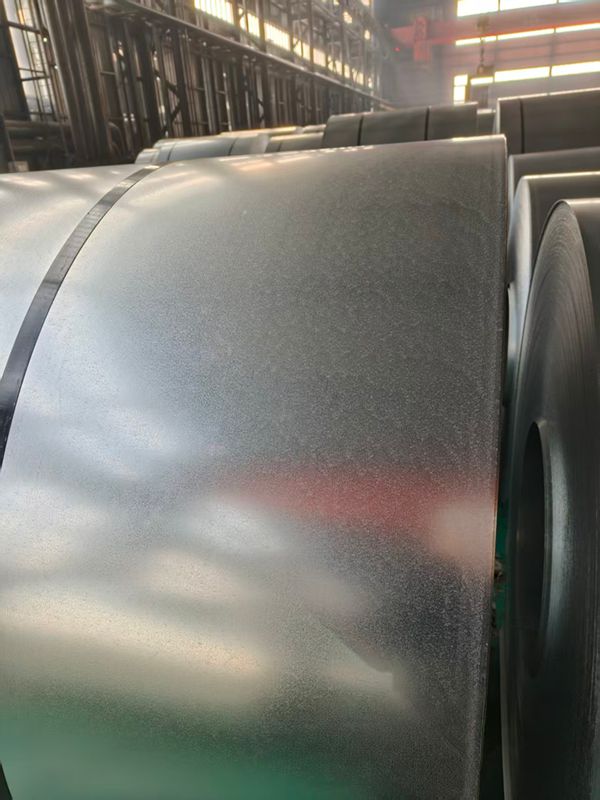

Authentic Steel supplies premium Zinc-Aluminum-Magnesium (ZAM / ZM) Steel Coils, a next-generation metallic-coated steel engineered for demanding outdoor, highly corrosive, and chemically aggressive environments. Manufactured on continuous hot-dip coating lines, our ZAM steel features a ternary alloy coating composed of zinc, aluminum (1.5%–11%), and magnesium (1.5%–3%).
This unique metallurgical microstructure creates a dense, tightly bonded protective barrier that provides up to 5 to 10 times the atmospheric corrosion resistance of conventional hot-dip galvanized steel (GI) and significantly outperforms standard Galvalume (GL) in high-salt and alkaline conditions. Produced in strict compliance with ASTM A1046/A1046M, EN 10346 (ZM series), JIS G3323, and GB/T 34292, our ZAM coils significantly reduce total lifecycle maintenance costs for global structural and renewable energy projects.
Cut-Edge Self-Healing Defense Mechanism: When exposed to moisture and atmospheric oxygen, magnesium and aluminum ions migrate from the coating layer to form a fine, insoluble protective film (Zinc Hydroxide / Simonkolleite) over sheared edges, punched holes, and surface scratches, completely halting red rust creep.
Extreme Resistance to Chemical & Atmospheric Attack: Demonstrates unmatched durability against ammonia gas, animal waste, soil moisture, and salt-laden marine air—making it superior to standard GI and GL steel.
Exceptional Surface Hardness & Wear Resistance: The Mg-enhanced alloy matrix increases surface hardness and provides low friction coefficients, preventing galling, micro-cracking, or flaking during high-stress roll forming and deep stamping.
Cost-Effective Alternative to Post-Galvanizing: Eliminates the need for secondary post-fabrication hot-dip galvanizing, painting, or edge touch-up operations, drastically cutting manufacturing lead times and fabrication costs.
Full Global Compliance & MTC Support: Backed by rigorous batch testing and delivered with official EN 10204 3.1 Mill Test Certificates (MTC) detailing coating mass, mechanical properties, and salt spray test compliance.
Due to its superior cut-edge self-healing capability, abrasion resistance, and extreme chemical durability, ZAM steel coils serve as essential stock material for critical global industries:
Renewable Energy & Solar Infrastructure: Ground-mounted solar PV tracking systems, solar farm mounting brackets, fixed tilt structures, and inverter mounting framing.
Agriculture & Livestock Engineering: Poultry cages, livestock housing structures, grain storage silos, greenhouse framing, and fertilizer storage facilities (high resistance to ammonia and animal waste).
Civil Infrastructure & Highway Safety: Highway guardrails, coastal sound barriers, bridge drainage pipes, culvert pipes, and coastal security fencing.
Industrial, HVAC & Automotive: HVAC ducting, cable trays, structural steel purlins, commercial refrigeration units, and automotive undercarriage components.
Quality control is integrated into every step of our continuous production line:
Triple-Spot Coating Weigh Test: Precise verification of double-sided ZM coating mass (ZM30 to ZM450).
T-Bend & Formability Testing: 0T to 2T tight-radius bend evaluations ensuring zero coating delamination.
Accelerated Salt Spray Endurance Test: Extended salt-spray chamber testing verifying multi-year atmospheric durability.
Continuous Online Thickness Monitoring: Digital laser gauge control maintaining uniform thickness tolerances across the full coil length.
Mill Test Certificate (MTC): Issued per production heat in full compliance with EN 10204 3.1 for total heat-number traceability from raw melt shop substrate to final export package.
To support diverse downstream manufacturing setups, we offer custom processing services including precision narrow-strip slitting, cut-to-length sheet flattening, and protective PE film lamination.
For long-distance ocean transport, all ZAM coils receive heavy-duty export packaging:
Inner wrapping with volatile corrosion inhibitor (VCI) anti-rust paper and waterproof plastic film.
Heavy-gauge galvanized steel inner/outer protective edge rings, side protective caps, and external steel sleeves.
High-tensile radial and circumferential steel straps secured firmly on seaworthy wooden pallets.
